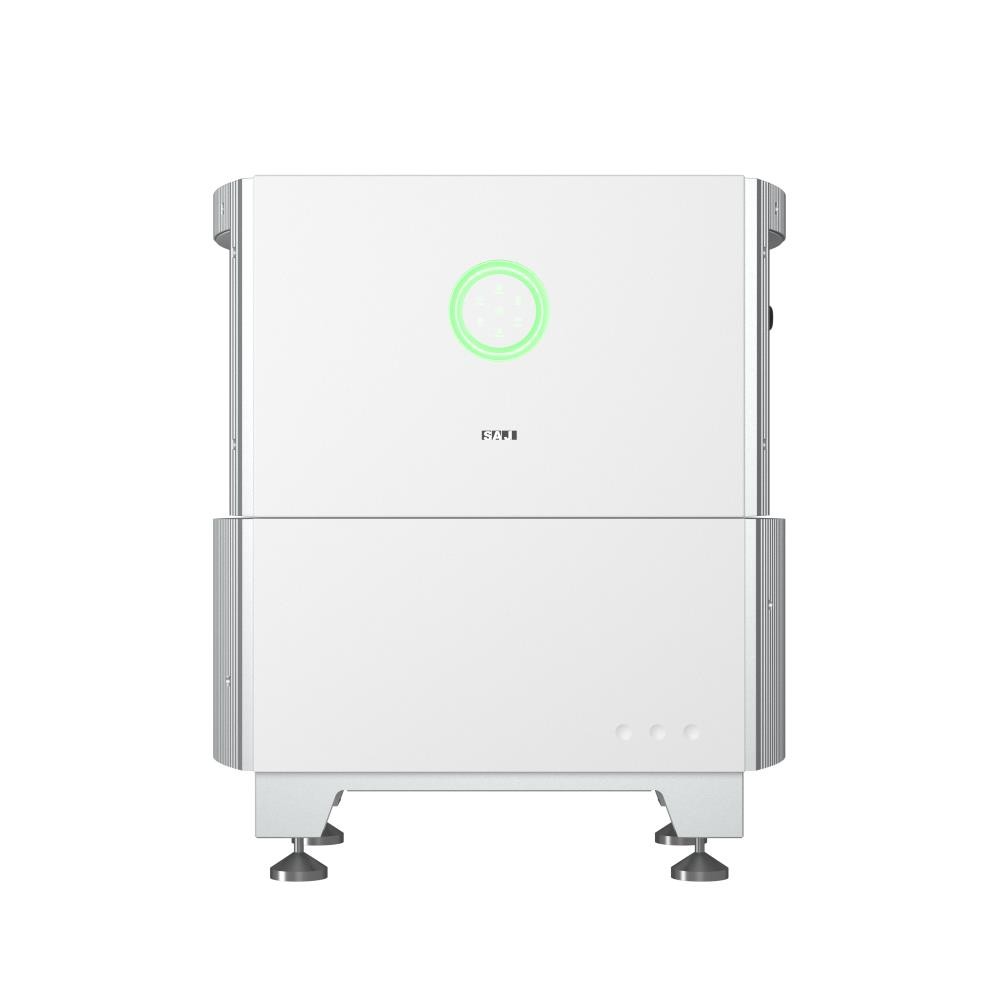

SAJ Battery Module 5kWh for B2-F

The SAJ Battery Module 5kWh is a component of the B2 Battery Kit. It offers key features such as a 5kWh capacity, high energy density, and a long lifespan. The module provides benefits like reliable backup power, efficient energy storage, and compatibility with various applications. Its unique selling points include easy installation, smart management capabilities, and the ability to expand the storage capacity as needed. • Excellent safety of cobalt-free LiFePO4 battery • Max charge/discharge 22A • Compact size • Scalable Solution • Easy installation • IP65 - can be installed indoors or outdoors • High energy density and efficiency • Chemistry: Lithium Iron Phosphate (LiFePO4) • 10 Year Warranty

SAJ Battery Module 5kWh for B2-F

Download

Products



Item no.

SAM6805

Product ref.

H2-5K-S2-5kWh

Dimension (L*W*H mm)

365 * 626 * 261

MPP voltage

90-500 V

Type

5K-S2-5kWh

Merk

SAJ

Series

HS2 All-In-One-Solution

Made in

China

Manufacturer's warranty

10

Weight (kg)

52.50

Display

No

AC nom. output power

5 kW

Degree of protection (IP)

IP65

Suitable for emergency power

Yes

Number of MPP trackers

2

Communication interface internet   Ethernet

Yes

Ambient temperature

-40-65 °C

Nom. battery capacity

5 kWh

Number of phases

1

Type of energy storage system

Hybrid/Retrofit storage

Short-term peak load

5 kW

Output voltage at AC

230 V

Connection via Wi-Fi

Yes

Max. load capacity

5 kW

Max. discharge capacity

5 kW

Max emergency power capacity

5 kW




SAJ B2 Battery Manual


SAJ B2 Warranty


SAJ ES-SAJ-B2 Datasheet
